Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Mẫu số: | UL62 | Nhiệt độ định mức: | 80ºC ~ 105 CC |
|---|---|---|---|
| Điện áp định mức: | 450/750V | Vật liệu dẫn điện: | Addned hoặc trần đồng |
| Vật liệu cách nhiệt: | TPE hoặc PVC | Vật liệu áo khoác: | TPE hoặc PVC |
| Tính linh hoạt của cáp: | Linh hoạt | Điện trở nhiệt độ thấp: | -40ºC |
| Kháng dầu: | Tốt | Chống mài mòn: | Tốt |
| Khả năng chịu áp lực: | Tốt | năng lực sản xuất: | 20km/ngày |
| Dòng điện tham chiếu: | 60A, 32A, 16A | Màu cáp: | Cam/Đen |

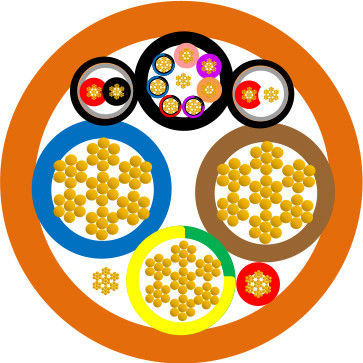

| Cấu hình cáp: | 3x10mm²+2x2,5mm²+2p (2x0,75mm²), 3x6mm²+2x2,5mm²+2p (2x0,75mm²), 5x6mm²+1p (2x0.75mm²), 3x6mm+1p | ||
| Làm nổi bật: | Low Temperature Resistant EV Charging Cable,80ºC~105ºC Rated Temperature Electric Vehicle Charging Cable,Flexible and Easy to Install EV Power Cable |
||

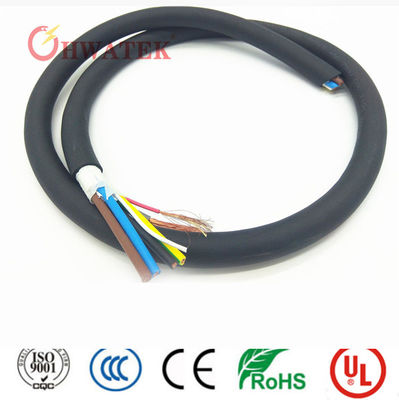

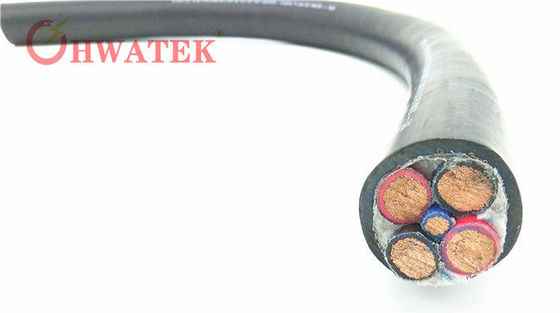

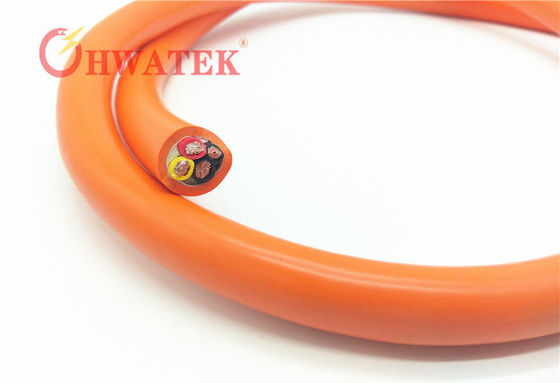

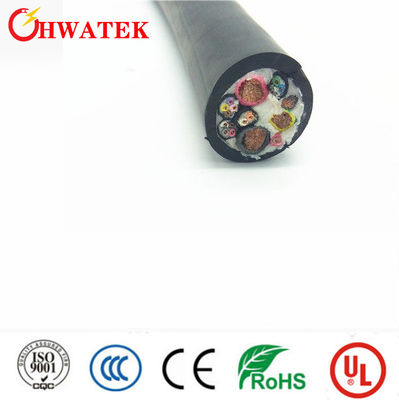

Connection wire between EV charging equipment and EV, suitable for various electric vehicles, charging stations, and charging piles.
UL62
Note: Similar specifications can be customized according to customer requirements.
| Wire Specification | Rated Voltage | Reference Current | Color |
|---|---|---|---|
| 3x10mm²+2x2.5mm²+2P(2x0.75mm²) | 450/750V | 60A | Orange/Black |
| 3x6mm²+2x2.5mm²+2P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 5x6mm²+1P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 3x6mm²+1P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 3x2.5mm²+1P(2x0.75mm²) | 450/750V | 16A | Orange/Black |

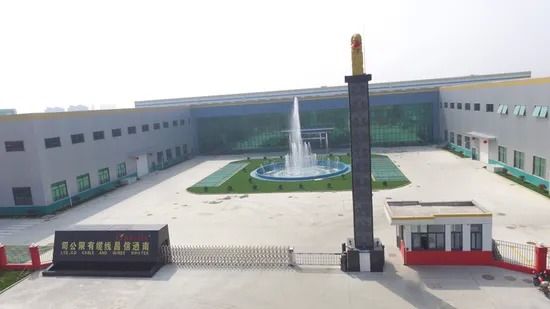

Founded in 2004 with 16 years of development, Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicated to R&D and production of various wires and cables including industrial control, communication instruments, medical control, green energy EV, and special wires and cables. OEM & ODM services are available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All our products are certified with CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC or ETL standards. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we serve customers worldwide through our comprehensive sales network.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
